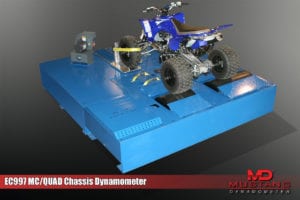

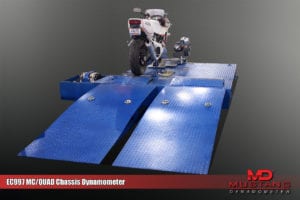

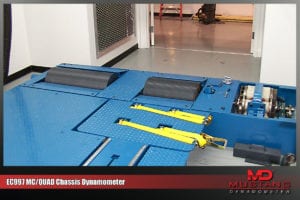

EC997 MC/Quad Overview

MD-EC997-MC/QUAD – The ultimate motorcycle/ATV performance dyno. Also available in our MC/SS form for testing Side-by-Sides!

Mustang’s MC/QUAD Dyno is a specially designed, high-speed, low-inertia motorcycle/QUAD/Kart combination dyno. The low inertia design and eddy current loading features are perfect for precision tuning and diagnostic applications. The base mechanical inertia of the EC997 MC/QUAD is perfectly matched for testing lightweight cycles and quads, while the powerful eddy current power absorption unit provides enough muscle to apply a serious load for steady state testing applications. Quickly and easily diagnose performance problems, break in engines, perform EFI mapping and much more. Mustang has delivered thousands of performance dynamometer systems over the past 35 years and has perfected the art and science of dynamic vehicle loading and dynamometer control. While other dyno manufactures are still trying to catch up with our technology, Mustang continues to lead the industry and is recognized around the world as the industry’s best with regards to dynamic dynamometer controls. Quickly and easily diagnose performance problems, break in engines, perform EFI mapping and much more. Available options include above ground kits, portable models, automatic restraint systems and vehicle cooling fans. For shops wanting to test side by sides Mustang offers the MD-EC997-MC/SS which offers a wider outer track of 80-inches, larger rollers and higher hp/speed capacity!

MD-EC997-MC/QUAD Performance Bike/Quad Series Specifications

Max Horsepower: 750 hp (559 kW) peak measurement capacity

Max Absorption: 250 hp (186 kW) peak absorption

Loading Device: Air-cooled eddy current power absorber

Motor: Available as an option for transient testing

Inertia: 240 lbs. (109 kg) base mechanical inertia in motorcycle mode, 450 lbs. (204 kg) in Quad Mode

Max Speed: 175 mph (282 km/hr)

Controls: Closed Loop Digital Controller with web based Holeshot Software. Includes Patented Virtual Road Simulation Technology.

Rolls:

Precision machined & dynamically balanced
Notched surface finish
12.625” (321 mm) diameter balanced rolls
20” (508 mm) face length for motorcycle mode
30” (762 mm) face length for secondary quad roller
16” (406 mm) inner track
66” (1,676 mm) outer track

Ramp/Platform: Includes steel ramp and platform with front wheel restraint kit for safe above-floor installation. The front wheel chock is adjusted via a hand crank or optional electric motor. The EC997-MC-QUAD can be equipped with the optional dual cooling fan kit.

Roll Decelerator: Allows vehicle deceleration without use of vehicle brakes. Eddy Current PAU used to decelerate rollers.

Power Requirements:

115 VAC, single phase, 60 Hz, 20 Amps (instrumentation)
230 VAC, single phase, 60 Hz, 30 Amps (dynamometer)

Shipping Weight: 3,000 lbs. (1,359 kg) dynamometer weight only

MD-EC997-MC/SS High Performing Bike & Side-by-Side Series Specifications

Max Horsepower: 1,300 hp (968 kW) peak measurement capacity

Max Absorption: 600 hp (447 kW) peak absorption

Loading Device: Air-cooled eddy current power absorber

Motor: Available as an option for transient testing

Inertia: 240 lbs. (109 kg) base mechanical inertia in motorcycle mode, 770 lbs. (349 kg) in
Quad/Side-by-Side Mode

Max Speed: 250 mph (402 km/hr)

Controls: Closed Loop Digital Controller with web based Holeshot Software. Includes Patented Virtual Road Simulation Technology.

Rolls:

Precision machined & dynamically balanced
Notched surface finish
19.75” (502 mm) diameter balanced rolls
20” (508 mm) face length for motorcycle roll
44” (1,118 mm) face length for secondary quad roller
16” (406 mm) inner track
80” (2,032 mm) outer track

Ramp/Platform: Includes steel ramp and platform with front wheel restraint kit for safe above-floor installation. The front wheel chock is adjusted via a hand crank or optional electric motor. The EC997-MC/SS can be equipped with the optional dual cooling fan kit.

Roll Decelerator: Allows vehicle deceleration without use of vehicle brakes. Eddy Current PAU used to decelerate rollers.

Power Requirements:

115 VAC, single phase, 60 Hz, 20 Amps (instrumentation)
230 VAC, single phase, 60 Hz, 30 Amps (dynamometer)

Shipping Weight: 4,250 lbs. (1,925 kg) dynamometer weight only
