MD-AWD-150 Overview

THE MD-AWD-150. Fixed wheelbase, linked AWD performance dynamometer.

The AWD-150 model comes with a K140 Model Eddy Current Power Absorber that has a maximum load capacity of 625 horsepower and a total power measurement capacity of 2,000-hp in AWD Mode.

The key to designing an AWD dynamometer properly is to understand the methods currently being used by manufacturers in the field of AWD drivetrain technology. A dynamometer that can accommodate various types of AWD vehicle transmissions and wheelbases without excessive complication and, more importantly, without risking damage to a client’s AWD system is paramount.

Full time AWD vehicles are designed to provide maximum performance regardless of road conditions. In cases where traction is less than ideal, a vehicle may be designed to improve stability and traction at the expense of power. This means adding torque to a spinning wheel or retarding of timing. In order to properly test an AWD vehicle for peak performance, an AWD chassis dynamometer must be able to simulate ideal road-load conditions to the vehicle. This approach allows the vehicle to be evaluated under “optimum” operational conditions; whereby torque is distributed to the vehicle’s tires in the same manner that would normally occur when a vehicle has equal traction at all four drive wheels, and is therefore operating at peak efficiency.

To achieve this, Mustang’s AWD-150 incorporates a linked drive system that synchronizes the front and back rollers to simulate a flat, dry road condition. Synchronization, or linkage, insures that the front and rear rollers are always spinning at precisely the same road speed. This process eliminates the possibility of activating a vehicle’s traction control system and also insures that a vehicle’s torque management system is operating under the assumption that the vehicle is not skidding, turning or slipping.

MD-AWD-150 Specifications

Max Horsepower: 1,200 /2,000-hp peak measurement capacity (2WD/AWD)

Max Absorption: 625-hp peak absorption (one eddy current)

Loading Device: Air-cooled eddy current power absorber (additional eddy current available)

Inertia: 630 / 1,260 lbs. (2WD/AWD)

Max Speed:

165 mph (2WD)
155 mph (AWD)

Controls: Closed-loop digital controller with web based Holeshot Software. Includes patented Virtual Road Simulation Technology (RST)

Rolls/Wheelbase:

Precision machined & dynamically balanced, knurled rolls Front roller grooved horizontally

8.575” (218.805 mm) diameter balanced rolls
35” (889 mm) face length
18” (457.20 mm) inner track width (Exceeds EPA/BAR Stds)
88” (2,235.20 mm) outer track width
18” (457.20 mm) roll spacing
96”-122” fixed wheelbase (longer wheelbases available) Side-to-side coupled roller to prevent damage to traction control

Roll Decelerator: Allows vehicle deceleration without use of vehicle brakes. Eddy Current PAUs used to decelerate rollers.

Air Requirements: 115 PSI, dry, regulated, oil free

Power Requirements:

115 VAC, single phase, 60 Hz, 15 Amps (computer)
230 VAC, single phase, 60 Hz, 40 Amps (dynamometer)

Axle Weight: 6,000 lbs. maximum

Shipping Weight: 7,200 lbs. (dynamometer weight only)

MD-AWD-150 Downloads

Mustang Dynamometer 2022 Performance Chassis Dyno catalog
MD Product Catalog MD Hole Shot Software Manual
MD-AWD-150-SE V8

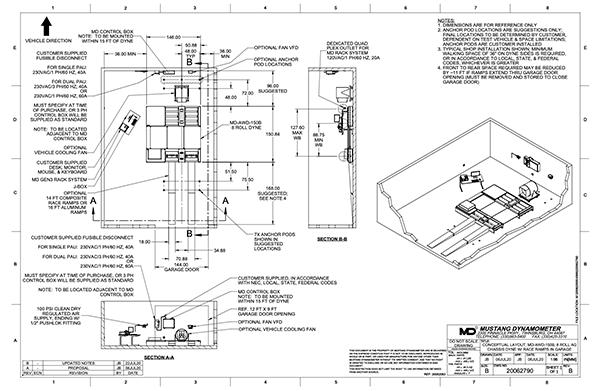

Aboveground Shop Layout
MD-AWD-150-SE V8

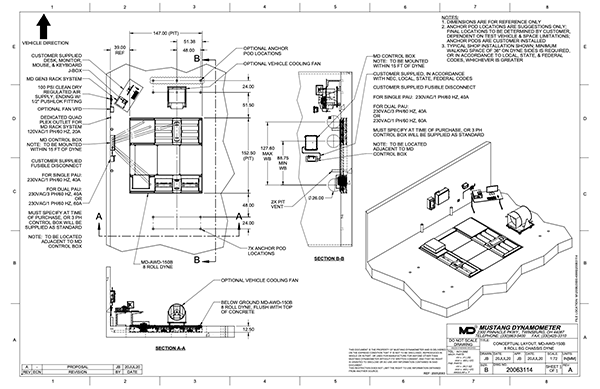

Pit Mount Shop Layout
